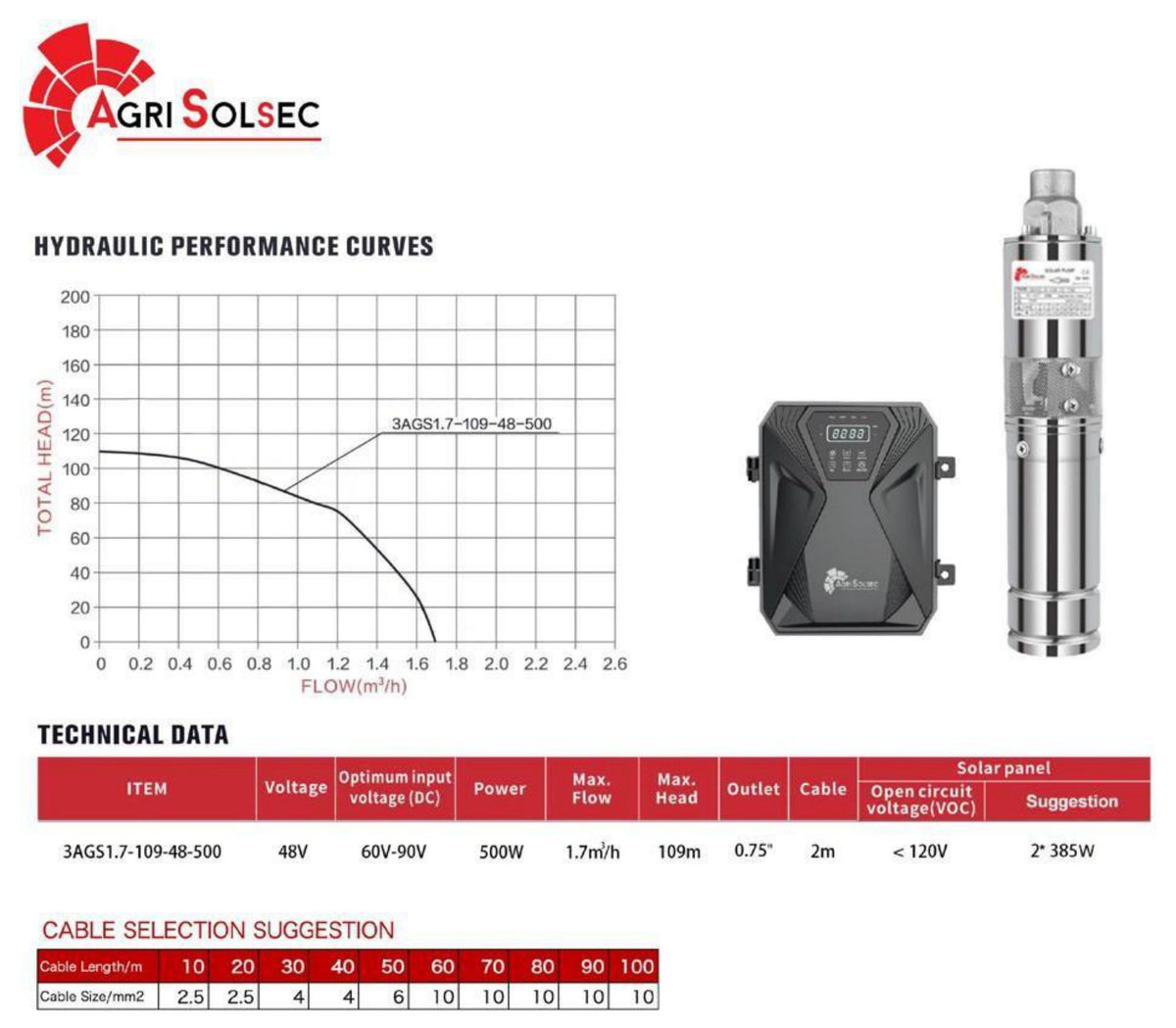

Hydraulic Performance Curve – 3AGS1.7-109-48-500
Regular price
R 5,500.00
Regular price
Sale price
R 5,500.00
A 500W 48V solar pump for cattle watering and small-scale irrigation. 1.7 m³/h flow at up to 109 m head, with MPPT, dry-run protection, and adjustable speed control.
500W brushless motor delivers 1700 L/h up to 109 m head — enough for cattle troughs, garden plots, and small irrigation runs without oversizing the panel array.
Just 2 × 370W solar panels (740W total) get this pump moving water. Lower up-front spend, simpler install, easier to service in a remote location.
MPPT controller wrings maximum output from the panels. Dry-run protection cuts the motor when water drops, so the pump survives empty boreholes.

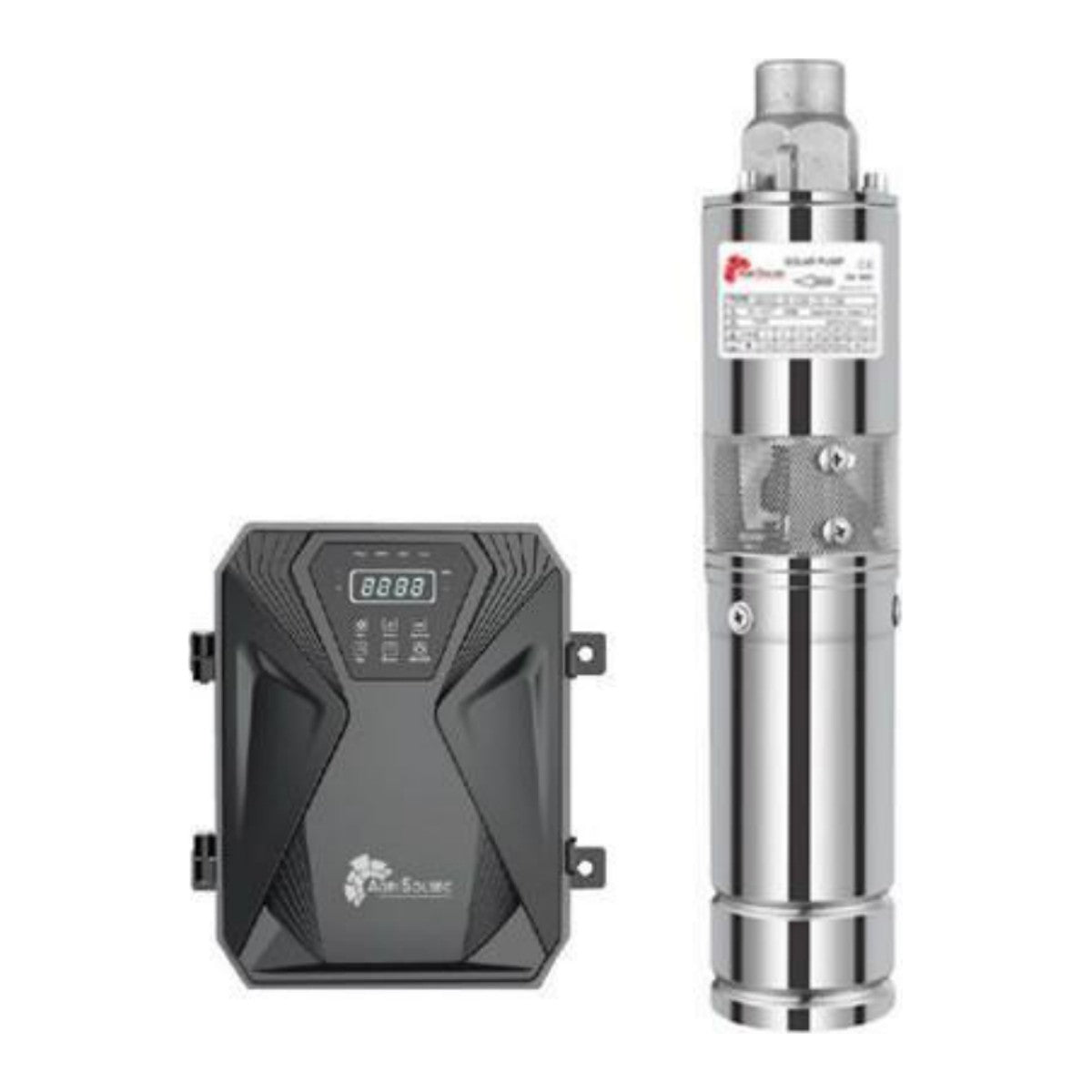

- 1 × 500W 48V solar pump (3AGS1.7-109-48-500)
- 1 × MPPT controller
- 1 × User manual
Specifications
Model
3AGS1.7-109-48-500
Power
500W
Voltage
48V
Flow rate
1.7 m³/h (1700 L/h)
Max head
109 m
Max water depth
30 m
Solar panels required
2 × 370W (740W total)
Recommended use
Cattle watering, small-scale irrigation
Includes
MPPT controller, dry-run protection, adjustable speed
Warranty
12-month manufacturer warranty
