Hydraulic Performance Curve – 4AGS5.2-146-110-1300
Hydraulic Performance Curve – 4AGS5.2-146-110-1300
Hydraulic Performance Curve – 4AGS5.2-146-110-1300
Hydraulic Performance Curve – 4AGS5.2-146-110-1300

Hydraulic Performance Curve – 4AGS5.2-146-110-1300

R 8,000.00
R 8,000.00
4.8 (127 reviews)
FeaturesSpecifications
Flexible payments from R 1,333.33

Pay over 2-6 interest-free instalments with Stitch Pay Later

A 1300W AC/DC solar pump for deep-well irrigation and cattle watering. 5.2 m³/h flow at up to 146 m head, with MPPT controller, dry-run protection, and adjustable speed.

1300W motor pushes 5.2 m³/h up to 146 m head — solid throughput for deep-well irrigation and cattle troughs across a working farm.

Runs on 110V solar input or AC mains. Stay productive through cloud, load shedding, or the early days of a new solar install.

MPPT controller maximises panel yield. Dry-run protection cuts the motor when water levels drop. Adjustable speed tunes flow to match the day's demand.

  • 1 × 1300W AC/DC solar pump (4AGS5.2-146-110-1300)

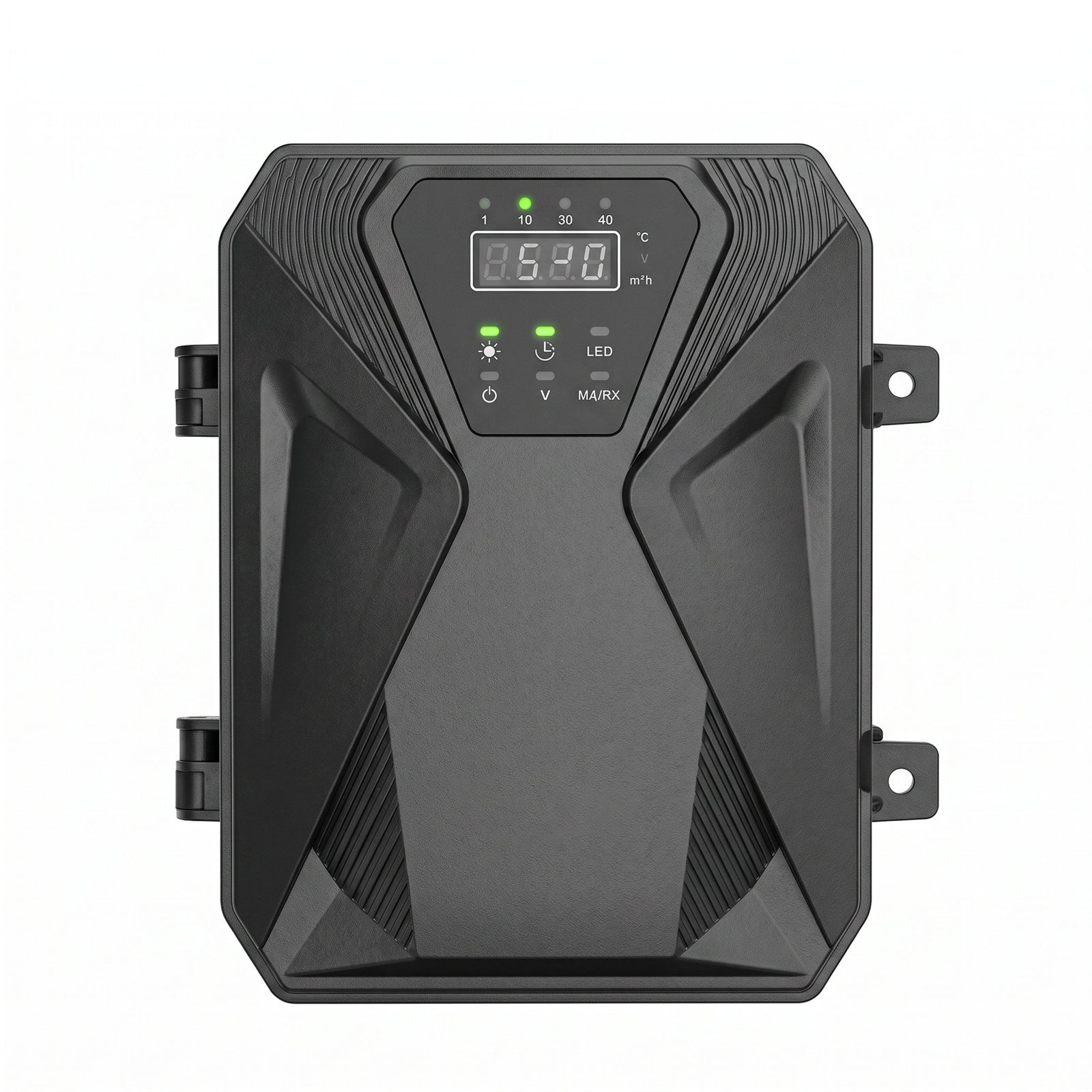

  • 1 × MPPT controller
  • 1 × User manual

Specifications

Model
4AGS5.2-146-110-1300
Power
1300W
Voltage
110V (AC/DC)
Flow rate
5.2 m³/h
Max head
146 m
Max water depth
60 m
Solar panels required
4 × 370W (1480W total)
Recommended use
Deep-well irrigation, cattle watering
Includes
MPPT controller, dry-run protection, adjustable speed
Warranty
12-month manufacturer warranty
