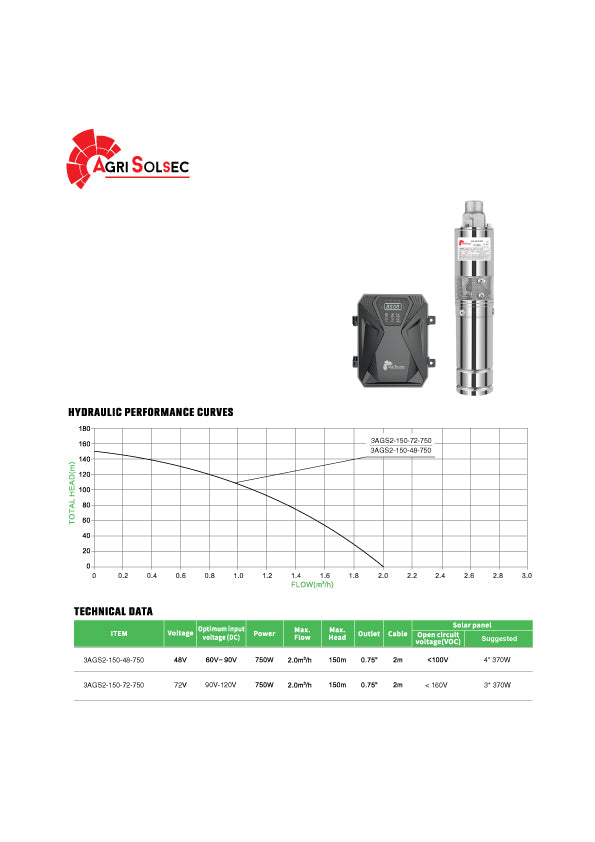

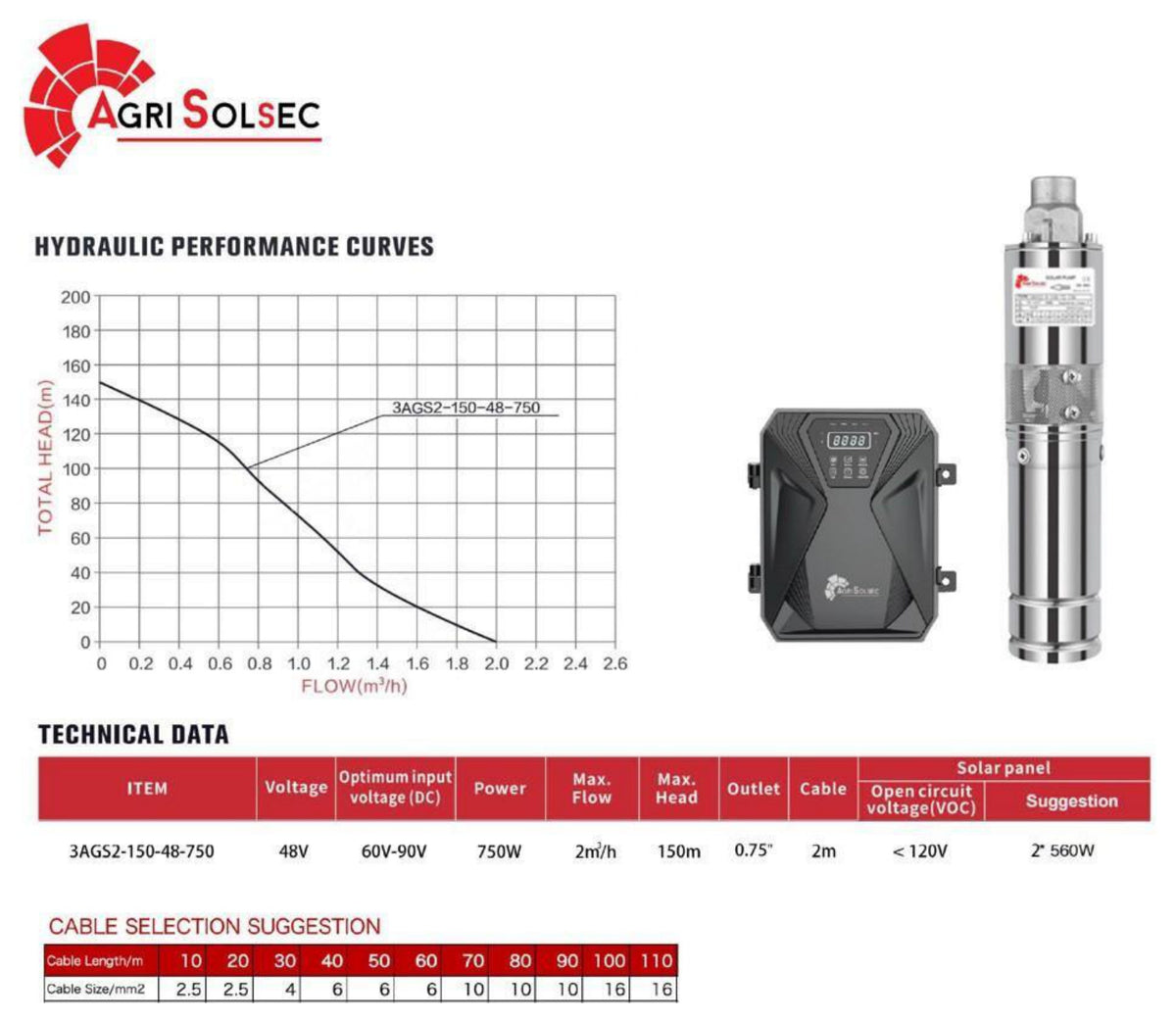

Hydraulic Performance Curve – 3AGS2-150-48-750
A 750W 48V brushless DC solar borehole pump. 2 m³/h flow at up to 150 m head, MPPT controller, dry-run protection, and adjustable speed — pure off-grid water for the farm.
750W brushless DC motor runs entirely from 3 to 4 × 370W solar panels — no Eskom, no fuel, no running costs. Set it up at the bore-hole and forget about it.
Lifts water up to 150 m head with a steady 2 m³/h flow rate. Suitable for water depths up to 30 m, making it a strong fit for medium-scale irrigation and livestock watering.

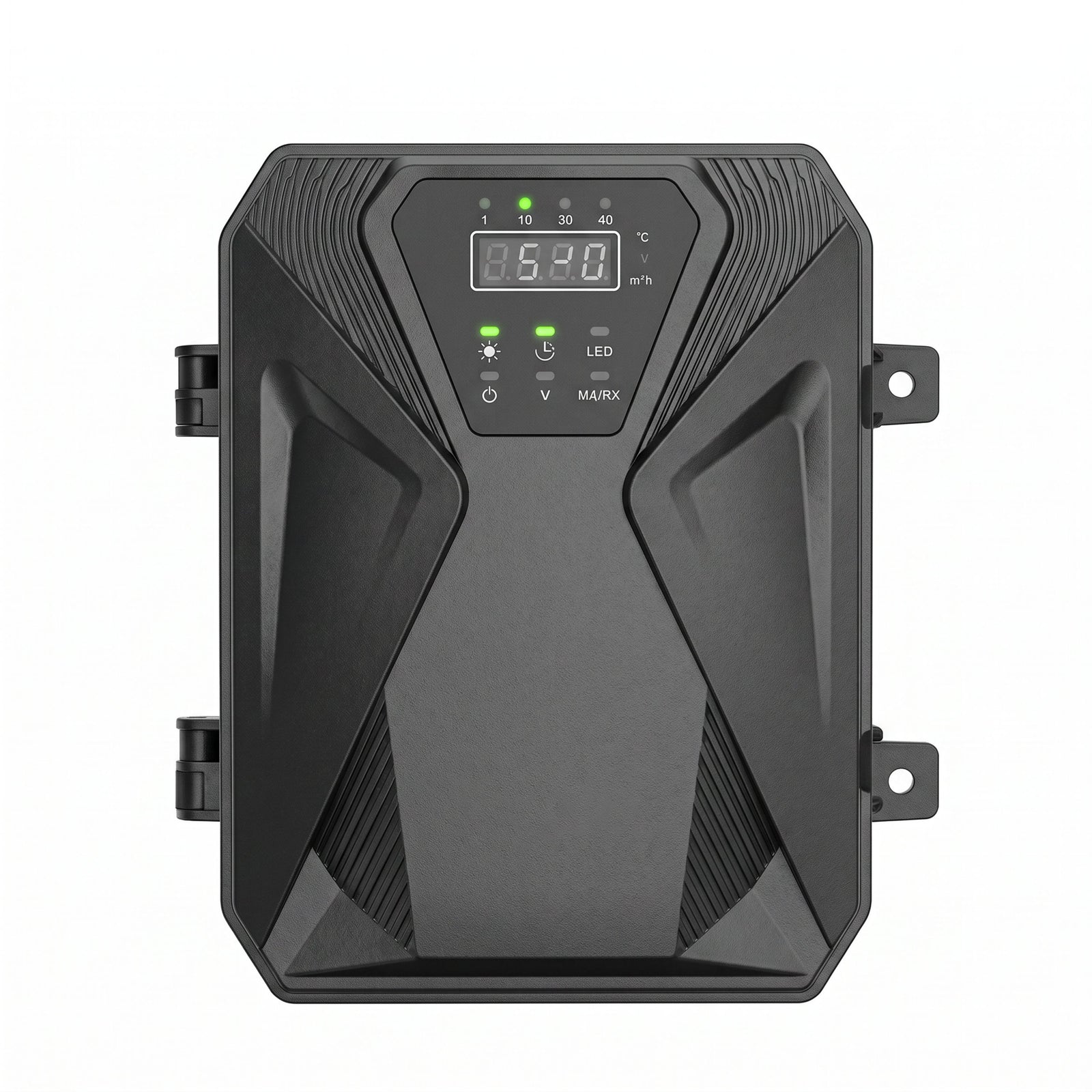

Built-in MPPT controller squeezes maximum power from the panels through the day. Dry-run protection cuts the pump when water levels drop, protecting the motor and extending pump life.
Tune the flow rate to match the application — slow it down for trickle irrigation, open it up for rapid filling. Brushless motor design keeps maintenance minimal.
- 1 × 750W 48V solar borehole pump
- 1 × MPPT controller
- 1 × User manual
