Hydraulic Performance Curve – 4AGS10.5-200-300-3000-A/D
Hydraulic Performance Curve – 4AGS10.5-200-300-3000-A/D
Hydraulic Performance Curve – 4AGS10.5-200-300-3000-A/D
Hydraulic Performance Curve – 4AGS10.5-200-300-3000-A/D
Hydraulic Performance Curve – 4AGS10.5-200-300-3000-A/D

Hydraulic Performance Curve – 4AGS10.5-200-300-3000-A/D

R 11,000.00
R 11,000.00
4.8 (127 reviews)
FeaturesSpecifications
Flexible payments from R 1,833.33

Pay over 2-6 interest-free instalments with Stitch Pay Later

A 3000W AC/DC solar pump for large-scale farms. 10.5 m³/h flow at up to 200 m head, with MPPT controller, dry-run protection, and adjustable speed for pivot irrigation and big herds.

Runs on 300V solar input or AC mains, so you stay productive whether the sun's out or you're tied to the grid. True flexibility for serious operations.

3000W of pumping power moves 10.5 m³/h up to 200 m head. Sized for large herds, pivot irrigation, and industrial water supply where smaller pumps would struggle.

MPPT controller squeezes maximum yield from the panels. Dry-run protection guards the motor when water drops. Adjustable speed lets you match output to demand.

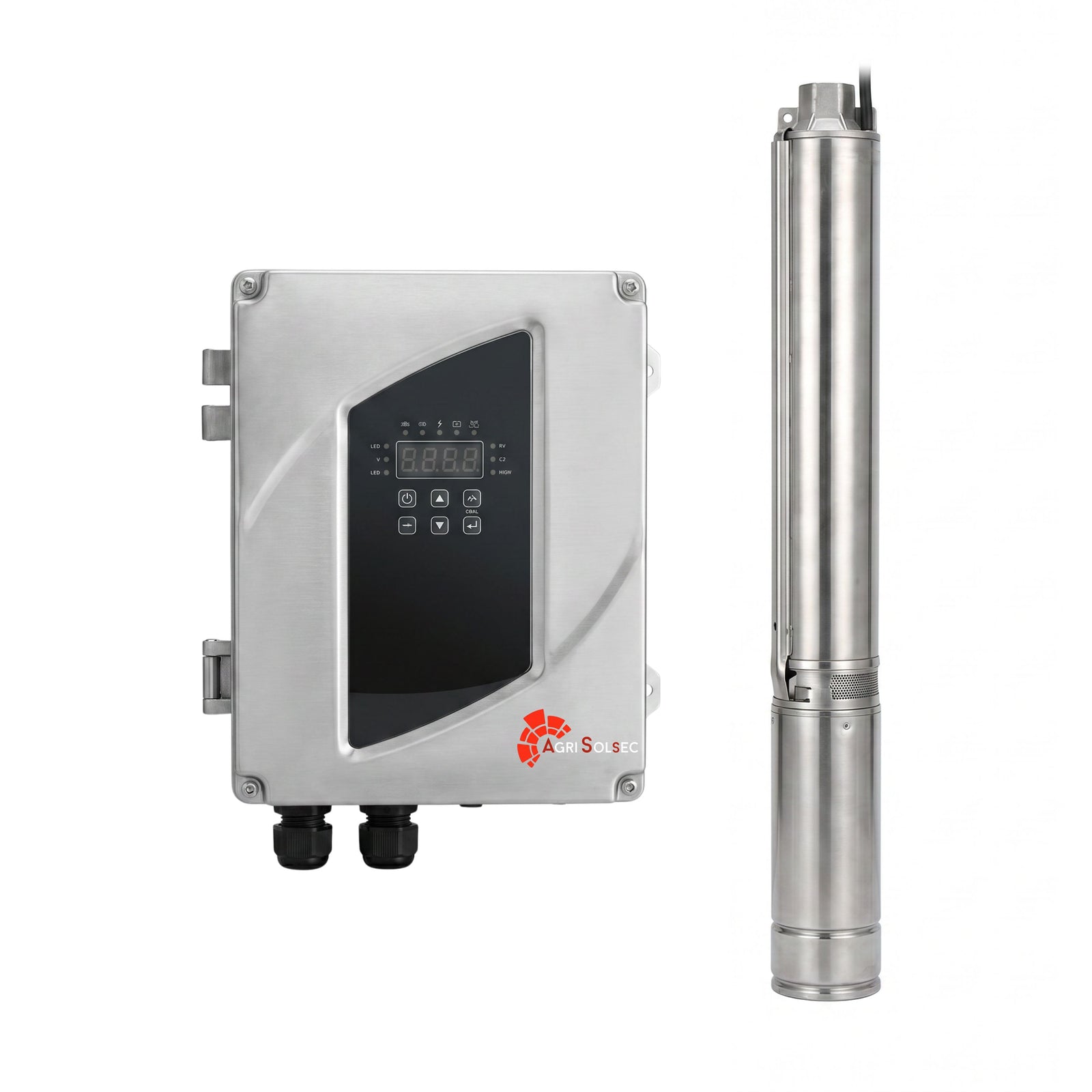

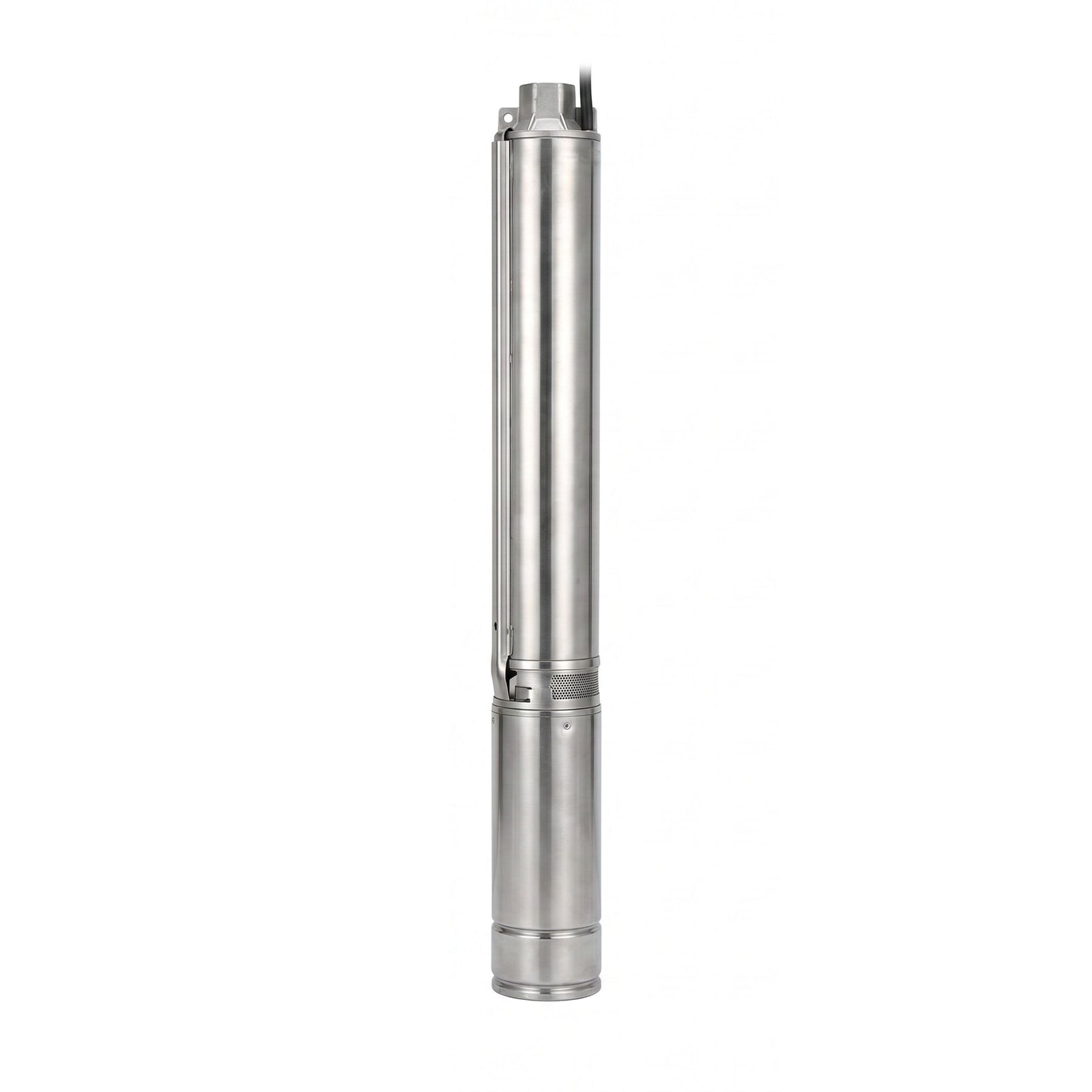

  • 1 × 3000W AC/DC solar pump (4AGS10.5-200-300-3000-A/D)

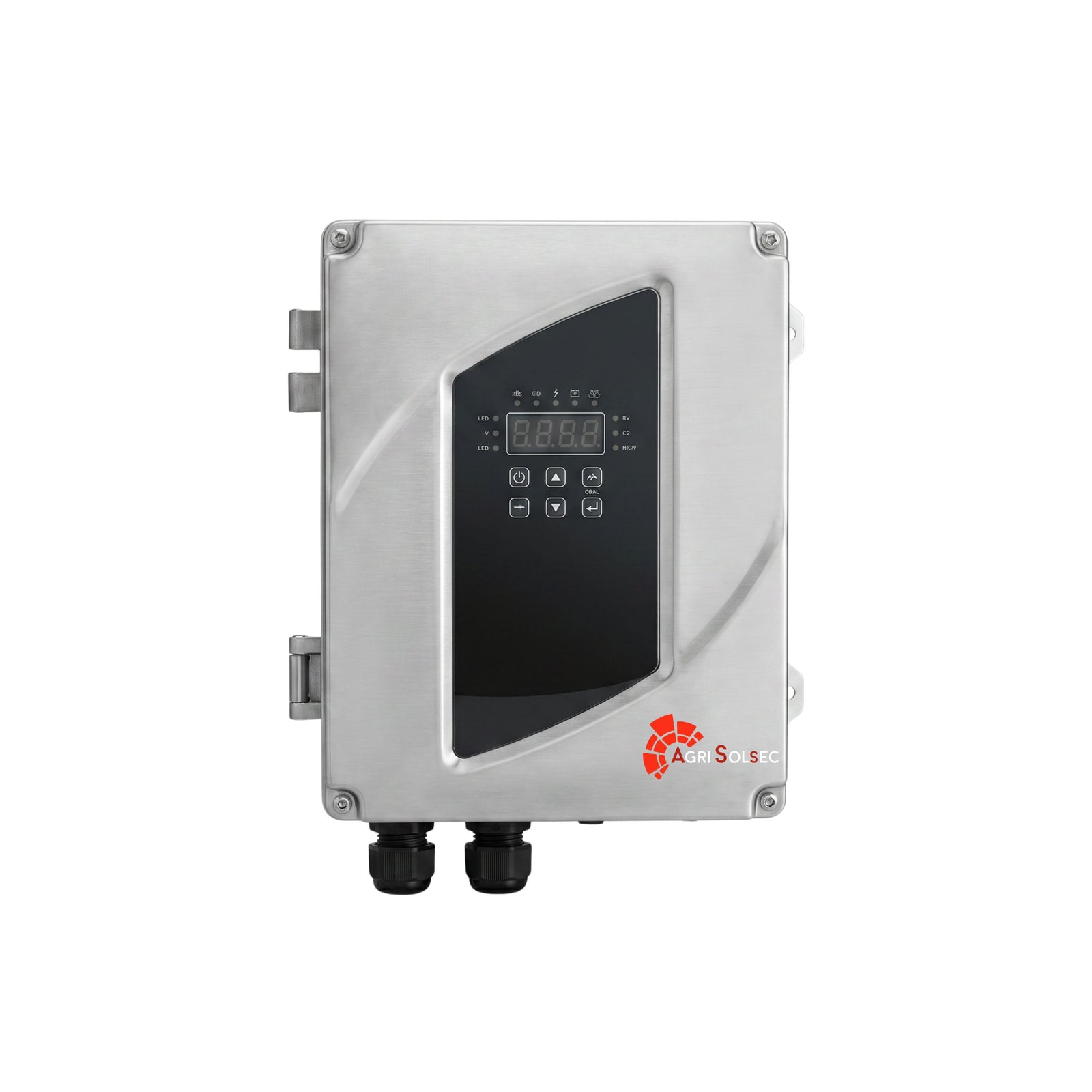

  • 1 × MPPT controller
  • 1 × User manual

Specifications

Model
4AGS10.5-200-300-3000-A/D
Power
3000W
Voltage
300V (AC/DC)
Flow rate
10.5 m³/h
Max head
200 m
Max water depth
60 m
Solar panels required
8 to 9 × 370W (up to 3330W)
Recommended use
Large herds, pivot irrigation, industrial supply
Includes
MPPT controller, dry-run protection, adjustable speed
Warranty
12-month manufacturer warranty
