R 10,000.00
R 10,000.00
4.8 (127 reviews)
FeaturesSpecifications
Flexible payments from R 1,666.66

Pay over 2-6 interest-free instalments with Stitch Pay Later

A 2200W AC/DC solar pump for deep boreholes and community supply. 5.2 m³/h flow at up to 255 m head, with MPPT, dry-run protection, and adjustable speed.

2200W of pumping power moves 5.2 m³/h up to a serious 255 m head. Built for deep boreholes that smaller pumps simply can't reach.

Runs on 300V solar input or AC mains. Switch between sources as conditions demand — keep pumping through cloudy days or when the panels are still being commissioned.

Recommended for large-scale irrigation and community water supply, with up to 60 m water depth tolerance. Built to deliver consistent output season after season.

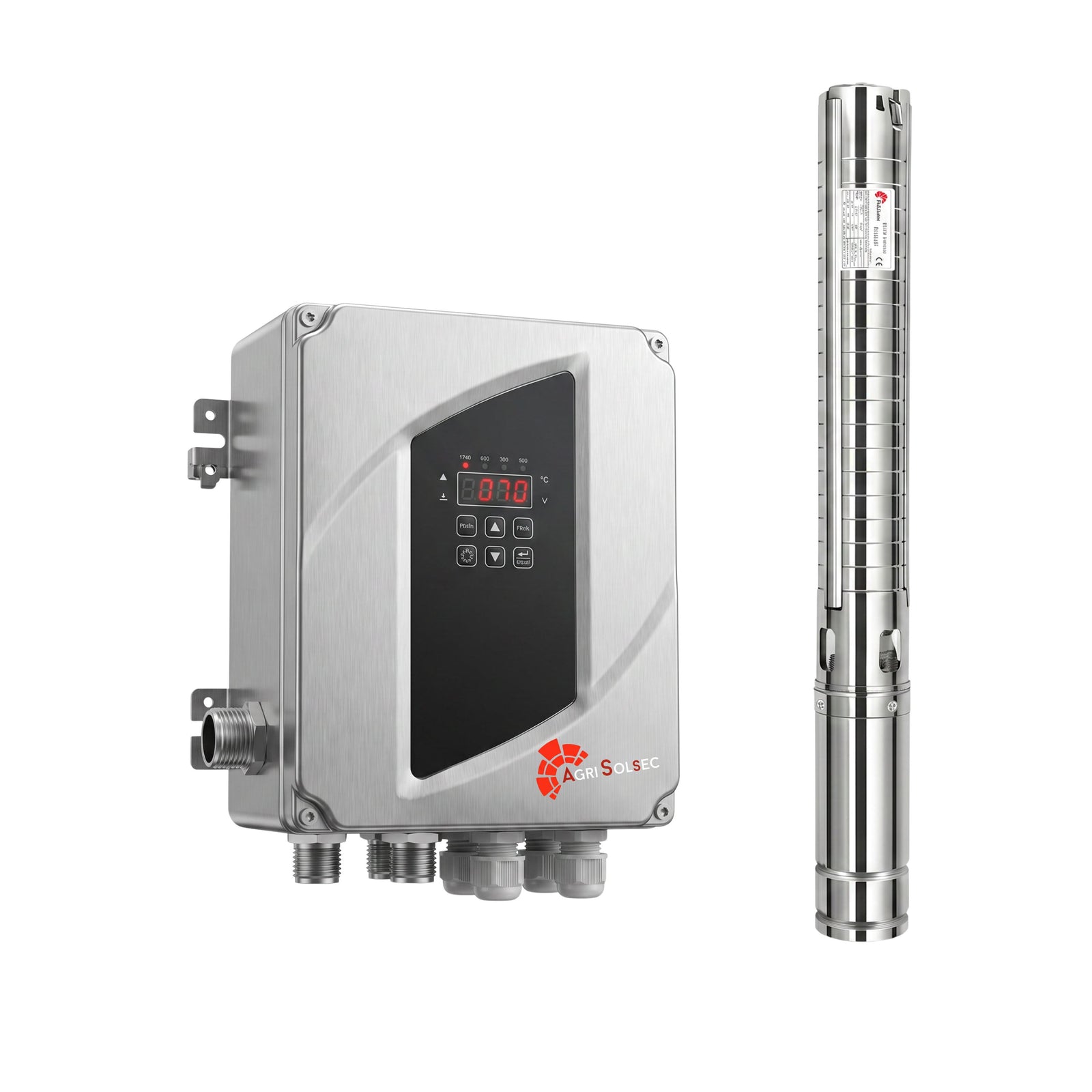

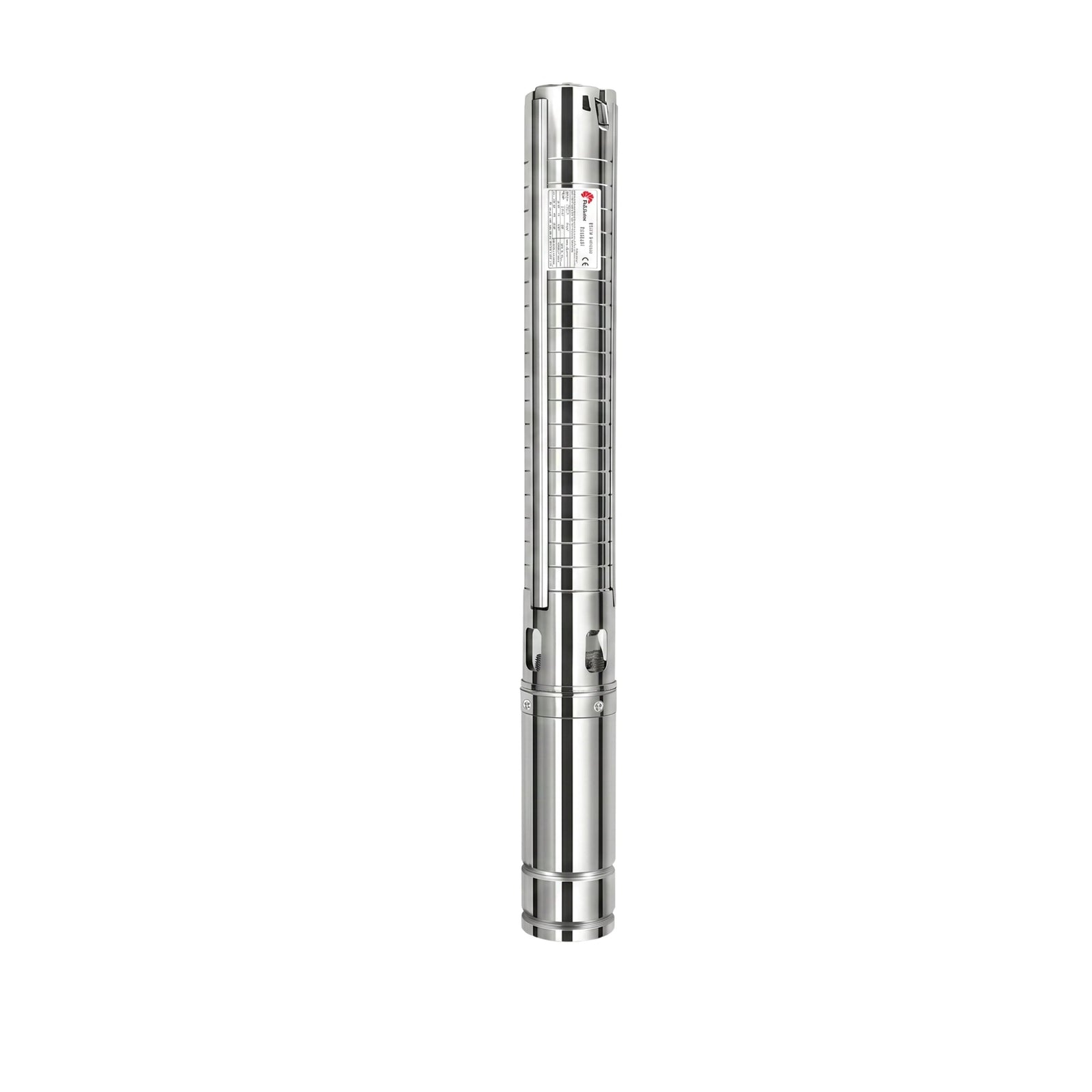

  • 1 × 2200W AC/DC solar pump (4AGS5.2-255-300-2200-A/D)

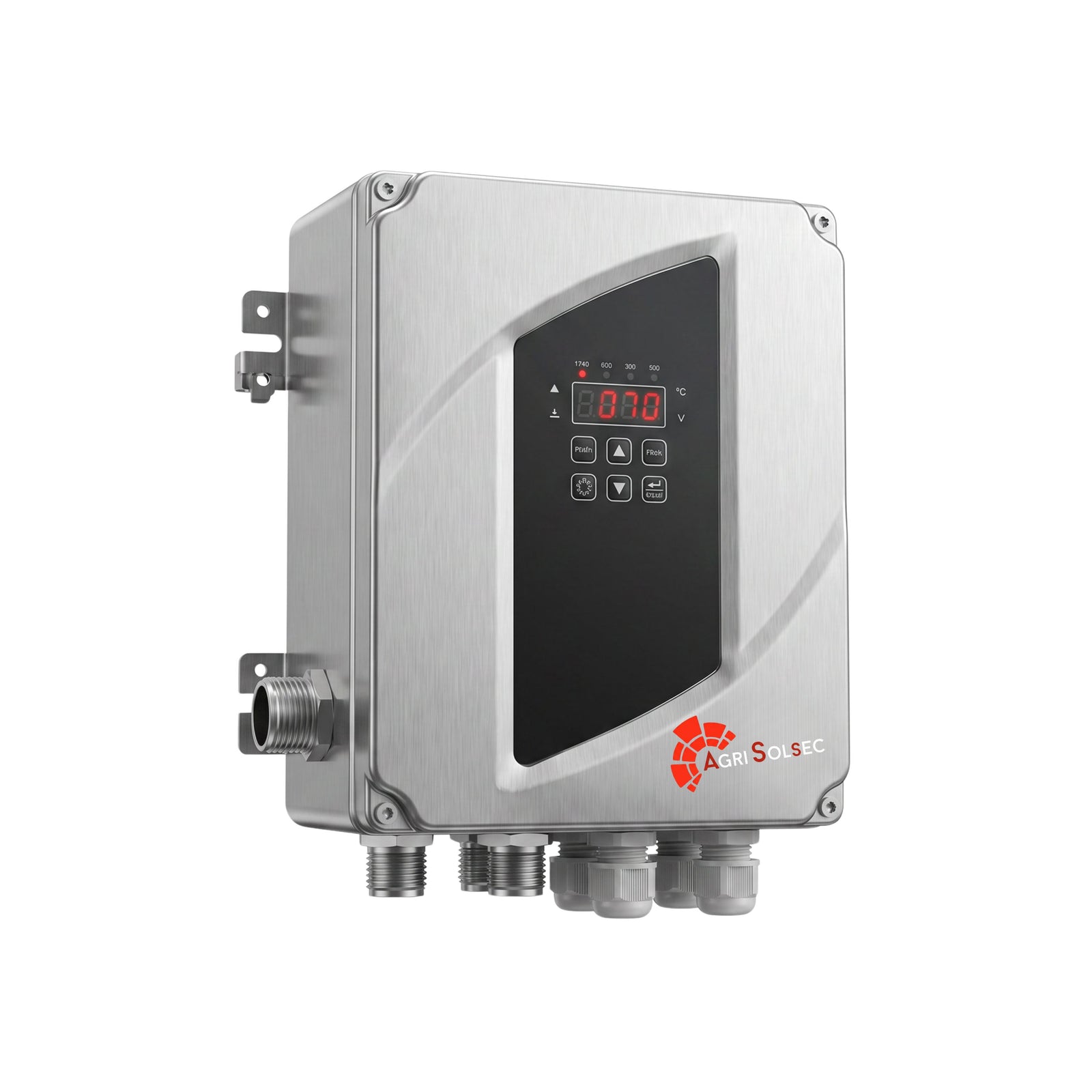

  • 1 × MPPT controller
  • 1 × User manual

Specifications

Model
4AGS5.2-255-300-2200-A/D
Power
2200W
Voltage
300V (AC/DC)
Flow rate
5.2 m³/h
Max head
255 m
Max water depth
60 m
Solar panels required
7 to 8 × 370W (up to 2960W)
Recommended use
Large-scale irrigation, community supply
Includes
MPPT controller, dry-run protection, adjustable speed
Warranty
12-month manufacturer warranty
